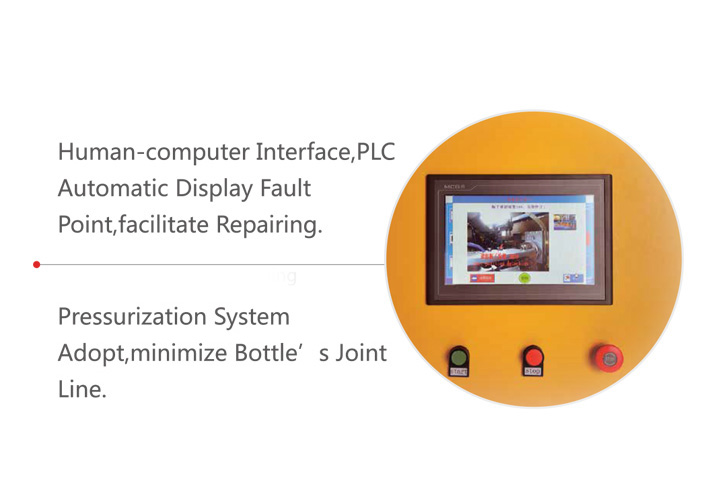

Human-computer Interface,PLC Automatic Display Fault Point,facilitate Repairing.Pressurization System Adopt,minimize Bottle's Joint Line
| Model No.? | AUD600-7 | AUD1500-4 | AUD2000-3 |
| number of cavity? | 7 | 4 | 3 |
| clamping stroke? | 90 mm | 120 mm | 130 mm |
| production? | 14000pcs/hr | 5000pcs/hr | 3000pcs/hr |
| total power? | 85kw | 85kw | 85 kw |
| actual power consumption? | 40kw | 40kw | 40kw |
| pressure for blowing? | 35 kg | 35 kg | 35 kg |
| flow rate for blowing? | 8m3 | 8m3 | 8m3 |
| neck diameter? | 26-32 mm | 26-32 mm | 26-32 mm |
| max diameter? | 65 mm | 90 mm | 100 mm |
| max height? | 230 mm | 330 mm | 330 mm |
| machine size LxWxH? | 3×2.25×2.3 m | 3.5×1.8×2.0 m | 2.3×2.1×2.1 m |
| auto loader LxWxH? | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m | 3.0×3.0×3.0 m |
| machine weight? | 4200 kg | 4200 kg | 4200 kg |
