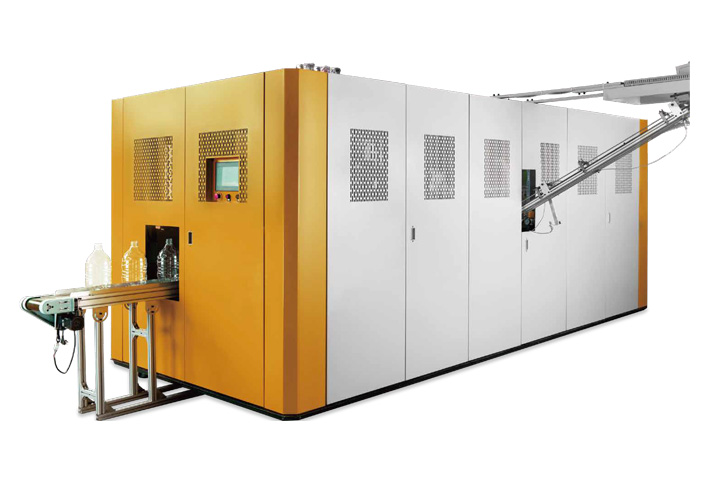

全伺服上吹15升 PET吹瓶機機型
15L BOTTLE BLOWING MACHINE FULL SERVO TYPE BLOWING FROM TOP
全伺服上吹600-7 PET吹瓶機機型特點TECHNICAL FEATURES
●密集型加熱節能型設計
Intensive Heating System,Power Saving?Economical Machine
●占地面積小
Space Saving Smart Machine
●可選擇排氣回收功能
Optional Air Recycle Use Function
●可直接連接罐裝機
Capable Of Connecting Filling Machine
●每腔瓶還加熱及吹瓶延時調整都可獨立控制
Preform Heating And Blowing Delay Individu-?ally Controlled
人機界面，自動反饋故障點位置方便維護
Human-computer Interface,PLC?Automatic Display Fault?Point,facilitate Repairing.
合模增壓系統，大幅減少合模線
Pressurization System?Adopt,minimize Bottle's Joint Line
| Model No.型號?? | AUD15L-1 | AUD20L-1 |
| number of cavity 模穴數 | 1 | 1 |
| clamping stroke 開模行程 | 260 mm | 300 mm |
| production 理論產量 | 750pcs/hr | 700pcs/hr |
| total power 總裝機容量 | 125kw | 125kw |
| actual power consumption 實際耗電量 | 60kw | 60kw |
| pressure for blowing 允許吹氣壓力 | 35 kg | 35 kg |
| flow rate for blowing 吹氣用氣量 | 10m3 | 11m3 |
| neck diameter 允許瓶口直徑 | 50-70 mm | 50-90 mm |
| max diameter 允許瓶身直徑 | 240 mm | 280 mm |
| max height 允許瓶身高度 | 450 mm | 460 mm |
| machine size LxWxH 機器尺寸 | 4.2×2.2×2.3 m | 4.2×2.2×2.3 m |
| auto loader LxWxH 上料機構 | 3×2×3.5 m | 3×2×3.5 m |
| machine weight 機器重量 | 5000 kg |
5000 kg |
